重型管材破碎機
 |
 |
|
|
●焊接鋼結構牢固耐用 ●機器罩殼設計精良 ●材質選用高度耐磨鋼材 ●Welded steel structure is strong and durable ●Our crushers casing is speifially designed for better cushing ffciency ●Uses high quality steel |

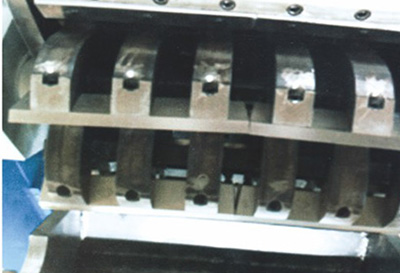

●刀具刀片采用日本SKD-11全鋼材質 ●西門子馬達， 日本NSK軸承 ●Uses the latest V-cuting technology to improve recyding fficieny ●The cutting blade is made of Japanese SKD-11 steel ●Uses Siemens motor, Japanese NSK bearing |
|
 |
 |
|
|

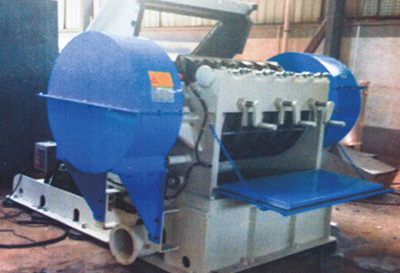

Equipped with hydraulics to open the inlet |

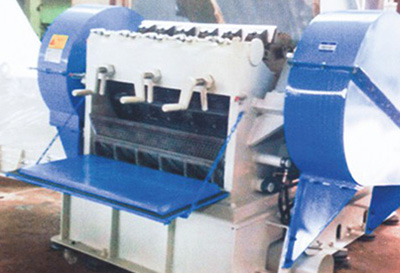

配有液壓裝置打開篩網 Equipped with hydraulic system for the sides |
技術參數(Specification)：
| 機型 Model |
生產量(公斤) Work load (kg) |
馬達(千瓦) Moto r(kw) |
機身尺寸 Measurements L*W*H (mm) |
打料口 Inle tsize(mm) |
動刀數 Rotary blade |
定刀數 Fixed blade |
| 600/700-55 | 800-1200 | 55-75 | 2600*2900*3000 | 550*900 | 10 | 4 |
| 800/700-55 | 1000-1500 | 90 | 2700*2645*3150 | 600*900 | 10 | 4 |
| 1000/700-6S | 1500-2000 | 110 | 2800*2060*3420 | 700*1000 | 12 | 4 |
| 1000/700-55 | 1500-2000 | 110 | 2800*2060*3420 | 700*1000 | 10 | 4 |
| 1200/800-6S | 2500-3000 | 150 | 3100*2360*3820 | 800*1200 | 12 | 4 |
| 1200/800-5S | 2500-3000 | 150 | 3100*2360*3820 | 800*1200 | 10 | 4 |
產品規格如有變更恕不另外通知！
